Grainfather Conical Fermenter Cooling Pump Kit

Specs:
Rated 12 VDC – 4.8 Watts

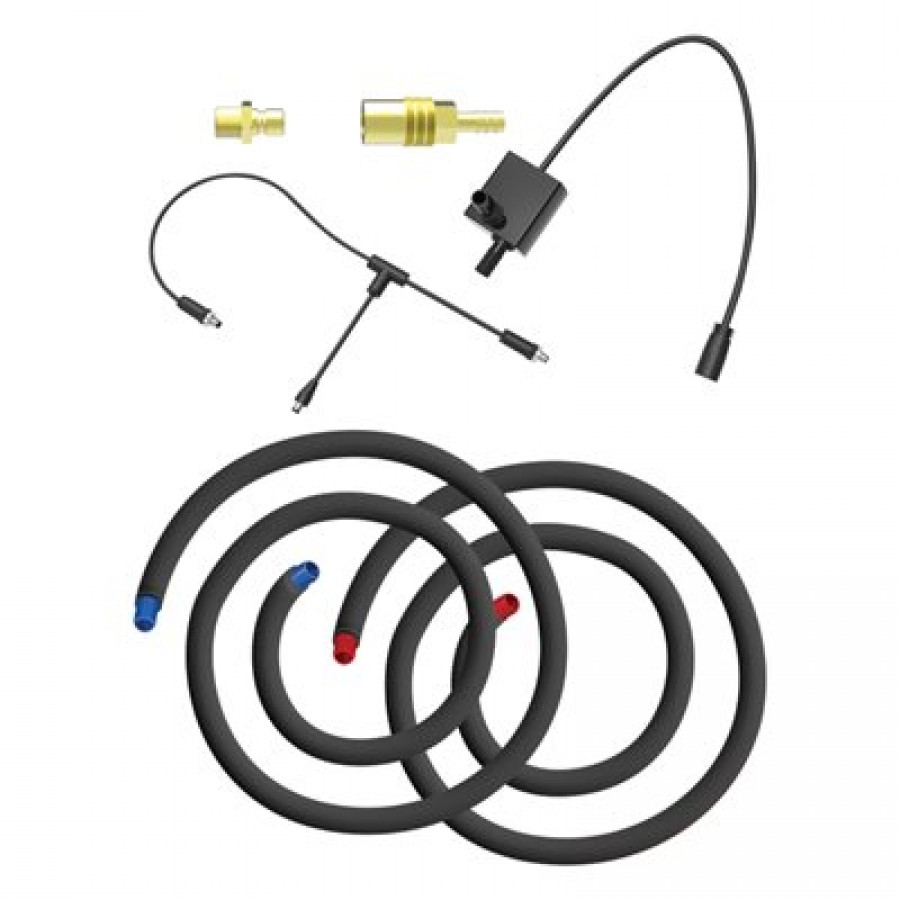

Includes:
Conical Fermenter Cooling Pump (submersible)
T-section power connector
2 x self-sealing couplers and insulated hoses
Instructions:
Find a suitable container to put the submersible pump into, preferably a cooler box. Place the pump upright in the cooler box. Take the threaded section of the self-sealing coupler and connect it to one side of the Grainfather Conical Fermenter. Make sure it is screwed in tightly; use a spanner if necessary. Connect the other end of the self-sealing coupler to the section you just used by pushing the spring-loaded sleeve back and sliding it over. Repeat these steps on the other side of the fermenter.

Now connect the cooling hoses to the pump:
The cooling hose (blue) connects to the lower side on the fermenter and to the barbed piece in the top of the pump.
The return hose (red) connects to the higher side on the fermenter. This can just drain back into the cooler box.
Fill the cooler box with ice and water.
Connect the 2 meter power cable to the back of the fermenter, the other side of this connects to the power adapter supplied with the conical fermenter.
Connect the cable from the pump to the T-piece connector.
Plug the unit into a power socket and turn on the power.
Everything is now set-up. To start cooling, follow the instructions on the fermenter controller manual.

NOTE: Always remember to make sure there is enough ice in the cooler box to sufficiently keep the fermenter cool.
